MVD Concept - 3D Model Representation Types

Concept Binding (IFC2x3)
3D Model Representation Types

Summary

One or more 3D shape representation context definitions, referenced by a project container object.

Reference

MVC-791

Version

n/a

Status

Draft

Relationships

Provides binding for the generic concept

3D Geometry Representation Types

History

This concept was previously developed by International Code Council (ICC-410)

Authors

Richard See

Editor

BLIS Consortium (www.blis-project.org)

Documents
Instantiation diagram and implementation agreements (PDF)

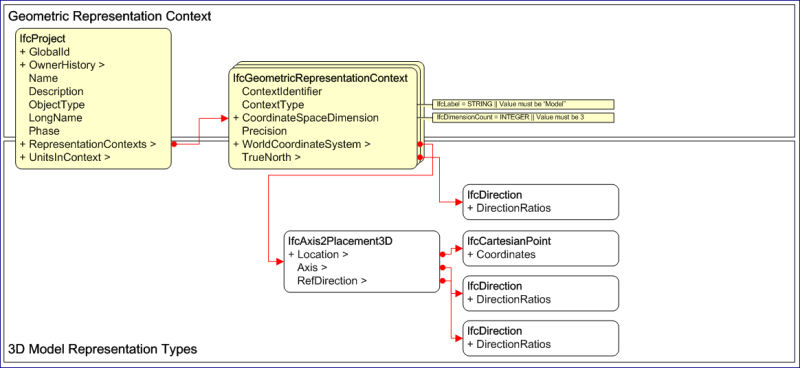

Instantiation diagram

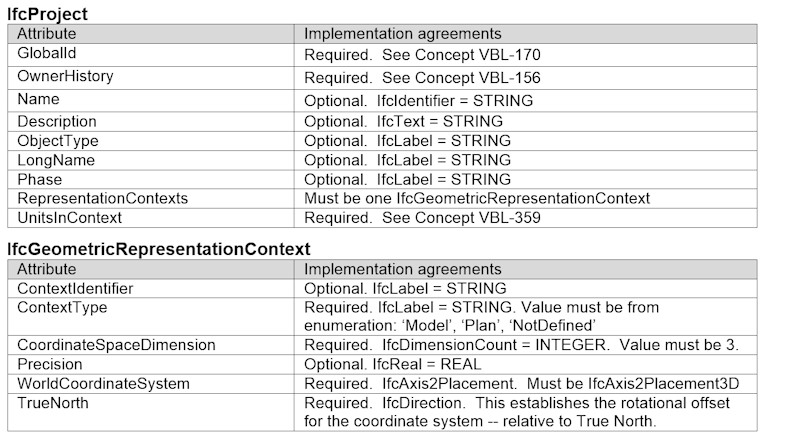

Implementation agreements
