Concept Binding (IFC2x3) Element Type Assignment Summary Associates an ElementType to an Element instance, associating the ElementType’s information. BuildingElement may be any BuildingElement subtypes: Beam, Column, Simple Slab, Simple Wall, Member, Pile, Ramp, Stair or ProxyElement.. Similarly, BuildingElementType may be any of the matching subtypes.Some of these Elementand Element types have specific attributes. these are addressed in PCI-053 and PCI-080
Reference	PCI-054	Version	1.1	Status	Draft
Relationships	None
History	Edited 15 November, 2012
Authors	Chuck Eastman
Editor	Precast/Prestress Concrete Institute

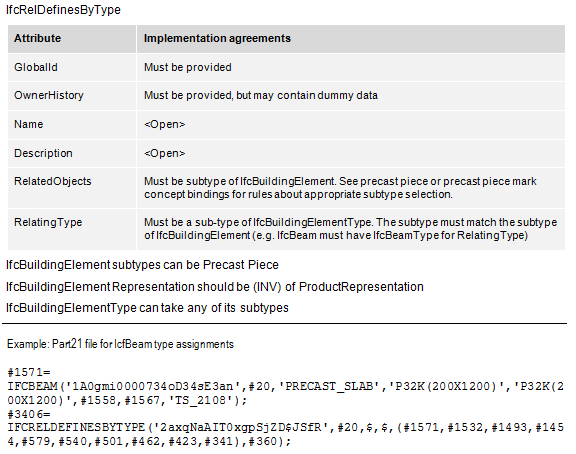

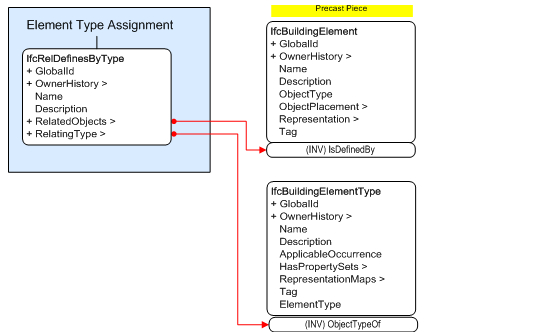

Documents Instantiation diagram and implementation agreements (PDF) Instantiation diagram Implementation agreements
