Placement Relative to Grid
| Summary |
| PCI-048, PCI-049 |
| Documents | |
| Instantiation diagram and implementation agreements (PDF) | |

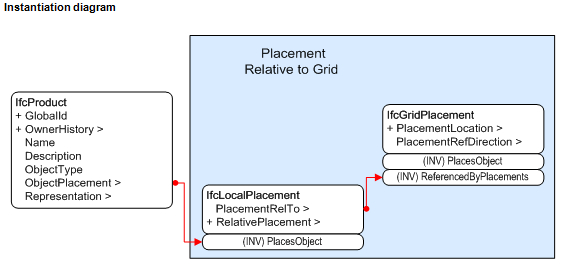

| Instantiation diagram | |
 | |

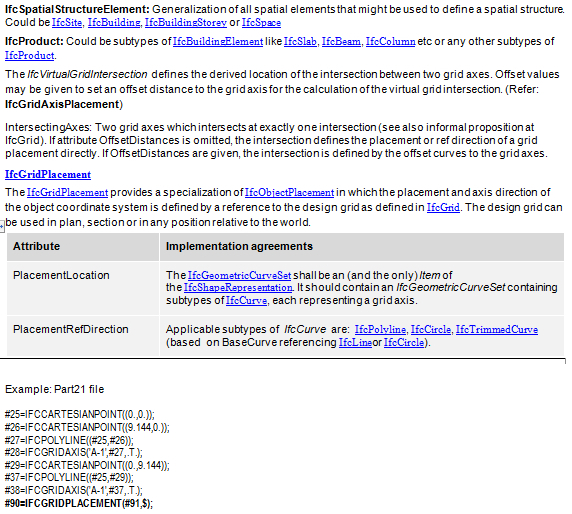

| Implementation agreements | |
 | |
| Concept Binding (IFC2x3) Placement Relative to Grid
|
|||||||||||||||||
| Reference | PCI-052 | Version | 1.1 | Status | Draft | ||||||||||||
| Relationships | None | ||||||||||||||||
| History | Revised Nov 13, 2012 | ||||||||||||||||
| Authors | Manu Venugopal | ||||||||||||||||
| Editor | Precast/Prestress Concrete Institute | ||||||||||||||||
|
|||||||||||||||||
